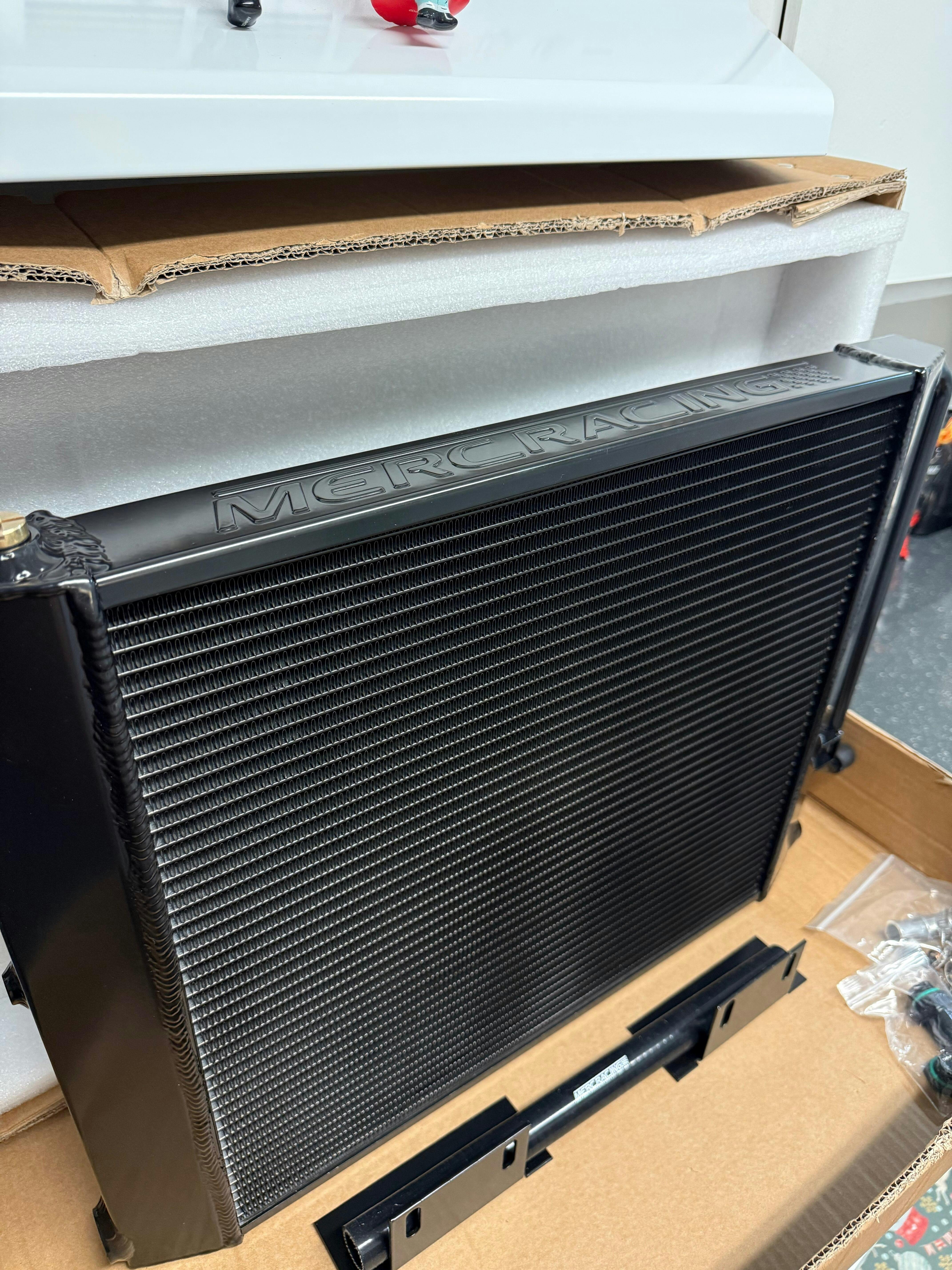

MercRacing High Capacity 3.0TFSI Heat Exchanger

MercRacing High Capacity 3.0TFSI Heat Exchanger

2 total reviews

Regular price $599.95 USD
Regular price Sale price $599.95 USD
Sale Sold out


Not instock!



Now offering the High Capacity HX from Mercracing!

Fits all S4,S5,A6,A7,Q5,SQ5,A8 3.0TFSI vehicles.

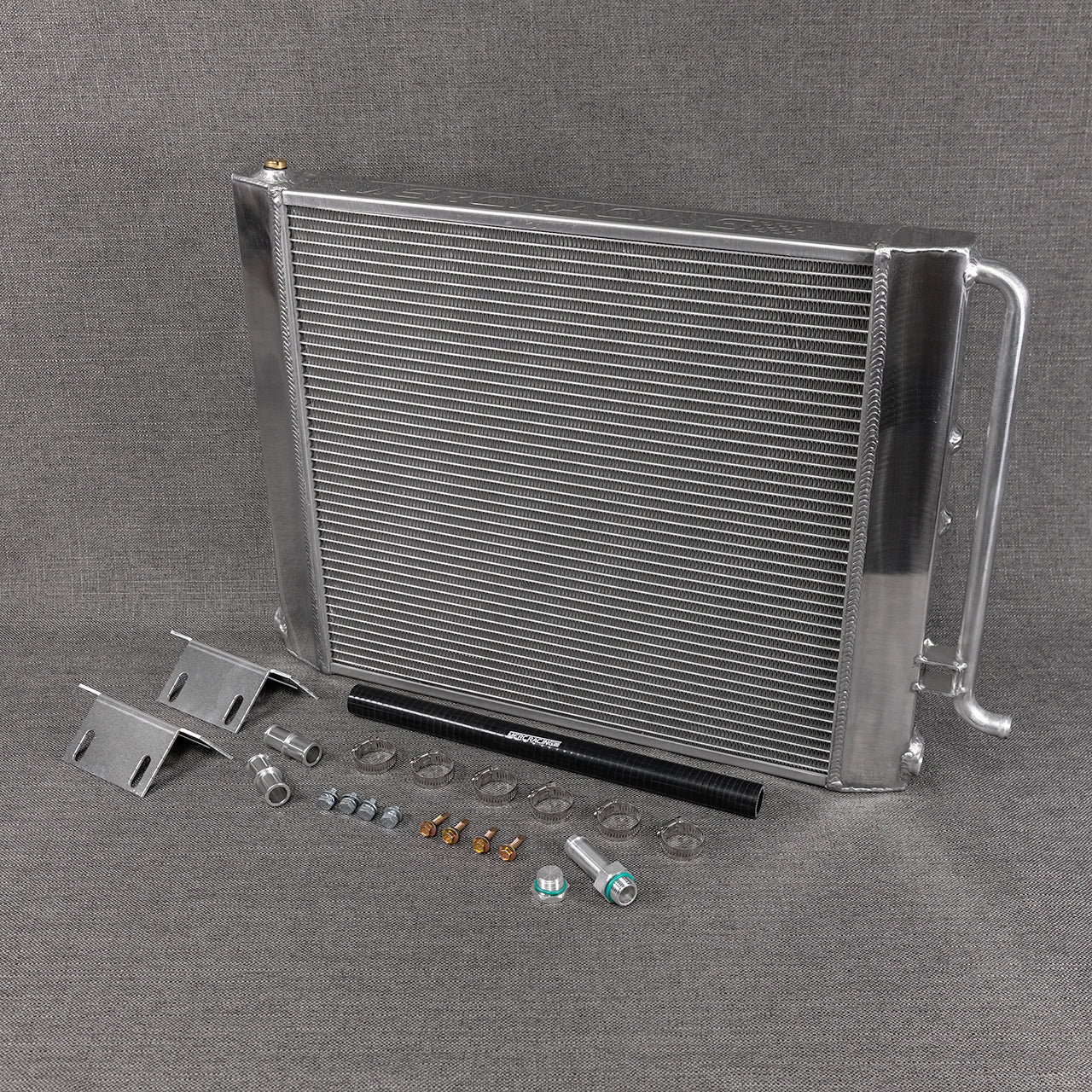

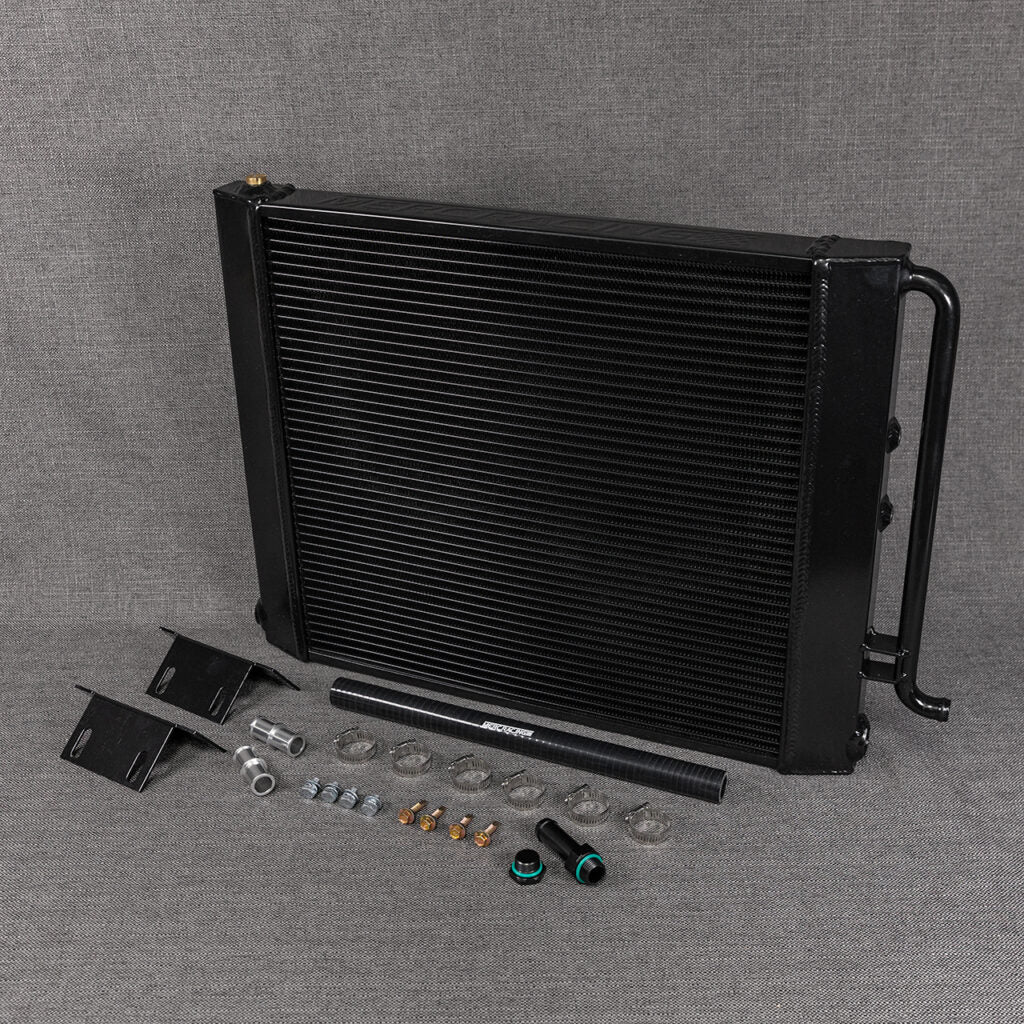

Available in Black or Polished Aluminum

The Audi air to water-cooled turbo and supercharged applications required an advanced configuration that further expands on their cooling system and addressed higher cooling capacity and water volume than any other product.

We took this challenge seriously and with our help from Audi owners/friends, we now provide you a cooling solution that performs amazingly on your Stock, upgraded or higher boost tuned applications.

Our unique patented design uses the entire area of these large vehicles to provide you with excellent cooling capacity, a ONE-Gallon water volume, and amazing results.

At the point of design and taking to market, no other heat exchangers in the market were designed this way.  This design allows for water to stay on the cooling stage longer and dissipate heat longer than other normal single and dual-pass systems.

  • High-density fin core for excellent heat dissipation.
  • Purge air easier with included bleed port.
  • Bleed port included for assisting air removal during installation.
  • Durable black satin/matte coating finish on end tanks for long-life durability and resistance to road debris, great finish, easy to clean, corrosion resistance, and long life.
  • All Aluminum hand tig welded construction
  • Side Mounting brackets and bolts for crash bar install – Included
  • Self-tapping screws for mounting included
  • 3/4″ Tubes
  • Dimensions: W 24″ x H 18″ x D 2.4″ not including side tubes.
  • Proven to be one of the most efficient heat exchangers in the market yet best priced as well!

U.S. Pat. No. D967,361
View full details

Customer Reviews

Based on 2 reviews
SEAN Mullins (Edmonton, CA)
Hi cap MercRacing

Very happy manifold temps stayed under 40 Celsius doing very spirited mountain driving were in the past i have seen 60 to 70 degrees. Also the drop in temp after hard up hill pulls was a fraction of the time.

Gregory Robinson (San Francisco, US)
MercRacing High Capacity 3.0TFSI Heat Exchanger

Perfect upgrade for Audi a8 3.0t
